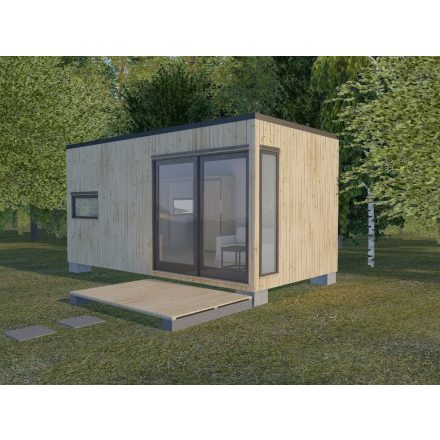

Vista Pavilon

Name: Vista Pavilon
SKU: TYPE_0
Price: 3797300 HUF

2 990 000 Ft + ÁFA / pc

Details

Dimensions: L: 5.95 x W: 3.0 x H: 2.80 m - 17.85 m2
Net floor area: 15.04 m2 + terrace on demand. Room: 15.02 m2.
Support structure: 2.3 mm thick steel profile support structure frame.
Wall structure: 10 cm thick EPS sandwich panel wall. + Facade and interior design layers.
Facade covering: Can be selected individually (wood, sheet metal, plaster and coloring on construction board, as well as hard plastic
coverings).
Windows and doors:

Entrance door: W: 2.50 x H: 2.30 (m) Sliding. Door and window structure with 3 layers of glazing in an aluminum case. 1 pc.
Window 1. W:0.60 x H:2.20 (m) Fixed. Door and window structure with 3 layers of glazing in an aluminum case. 1 pc.
Window 2. W: 1.20 x H:0.6 (m). Flip-open. Door and window structure with 3 layers of glazing in an aluminum case. 2 pcs.

Electrical distribution cabinet: 1 pc.

Number of connectors: 4 pcs.

Number of light switches: 2 pcs.

Built-in ceiling lights: 2 pcs. + 1 outdoor.

Floor structure: Room: Laminate parquet.

Roof: carpentry superstructure (gable roof, semi-gable roof) and its roofing material can be chosen according to demand (metal sheet, fired ceramic tile, concrete tile, bitumen shingle).

Internal wall structure: Laminated glued wooden paneling, wainscoting, plasterboard painted in any color as required. After delivery and installation, we also undertake the installation of cold wall coverings.

Socket thermal insulation: 50 mm URSA glass wool. It can be expanded as needed during installation.

Roof insulation: 50 mm URSA glass wool. It can be expanded as needed during installation.

Other: An additional canopy and terrace can be ordered in size and design as required.
